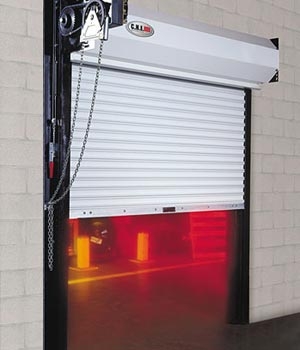

The Guardian™ Fire Door is engineered to meet ever-increasing demands of property owners and insurance underwriters in a simple, easy-to-test, and reset fire protection product. Utilizing standard chain hoist operation, these rolling steel doors feature a reliable, safe procedure for frequent drop testing with a U.L. label rated from 3/4-hour to 4-hour protection. Manual push-up operation, fail-safe, and automatic reset motor operation models are optional to the Guardian standard.
The National Fire Protection Association (NFPA) and other model codes recommend frequent drop testing of rolling steel fire doors to ensure a continuous state of operational readiness. C.H.I. strongly promotes these recommendations with the Guardian’s advanced design features.
Safe, simple, inexpensive, and repeatable drop testing is now made possible in any facility with the flip of a handle
No ladders, tools, or equipment are required to drop test and reset Guardian™ Simple Test Fire Doors
Installation time is greatly reduced because there is no complicated release and governor assemblies
Curtain gauge selection: 22, 20, and 18 gauge galvanized, high tensile steel
Slat Profiles: Curved, Flat
Operation: Manual push-up, chain hoist (standard) or motor operation
Colors: Pre-painted gray, white, tan, and brown or galvanized finish. Powder-coat options available.
Guides mount to approved masonry, steel, and sheet rock jambs
Options and accessories available
Slat profile
Flat Slat (FS) cover 2-1/2” high by 3/4” deep
Curved Slat (CS) cover 2-5/8” high x 7/8” deep
Endlocks & Windlocks
Malleable, zinc-placted cast iron endlocks and windlocks maintain curtain alignment and increase windload capacity. Galvanized malleable cast endlocks are fastened to every other slat. Windlocks are added as dictated by door size & windload requirement.
Windload: Designed to withstand a minimum of 20 lbs psf (per sq feet) of windload to an amount that prevents curtain per square foot of windload deflection to prevent buckling or being blown out of the guides.
Gauge
22, 20 or 18 gauge interlocking galvanized steel
Finish
Solid Gray, Gray & White, Tan & White
Optional: Stock RAL powder-coat option in 188 colors
Slats are hot-dipped galvanized per ASTM A653 A with baked on epoxy primer and polyester finish coat available
Vision panels
5" x 1-1/8"
Face Mount (E or Z) or Jamb Mount
Mount to Steel, Wood or Masonry Jambs
Guides
Fabricated from three (minimum 3/16” structural steel angles bolted together to form guide channel.
Guide angles include curtain stops & flared guides
Hot-dipped or cold sprayed galvanized guides (optional)
Upward-expanding guides may be welded to approved steel construction
Headplates
Fabricated from minimum 1/4” steel plate.
Drive side of barrel to be provided with precision sealed ball bearing in cast iron housing
165-degree fusible links provided as standard detection/release devices
Fail-safe time delayed releases, smoke detectors and audible and visual warning systems are optional
Drop speed is controlled by quiet governor – closing speed is between 6” to 24” per second per NFPA 80
Manual Push-up, Chain-hoist (standard)
* Note: Simple test feature not available on manual push-up doors
Springs
Spring tension assembly within barrel by precision ball bearings.
Assembly designed for 20,000 cycle life springs (Standard). Higher cycles optional
Motor operation
Rolling Doors are also available with Motor operation.
Refer to the motor operator area chart to select operator type based on dimensions and gauge
Choose between wall mount or front of headplate mount. Use the charts to determine headroom, sideroom and backroom clearance requirements.
Hood
Fabricated from minimum 24-gauge galvanized steel sheet shaped to fit within the headplates. Intermediate hood support(s) furnished as required.
Locking
Chain hoist doors operated doors furnished with chain hoist keeper suitable for padlocking. Plated slide locks optional.
